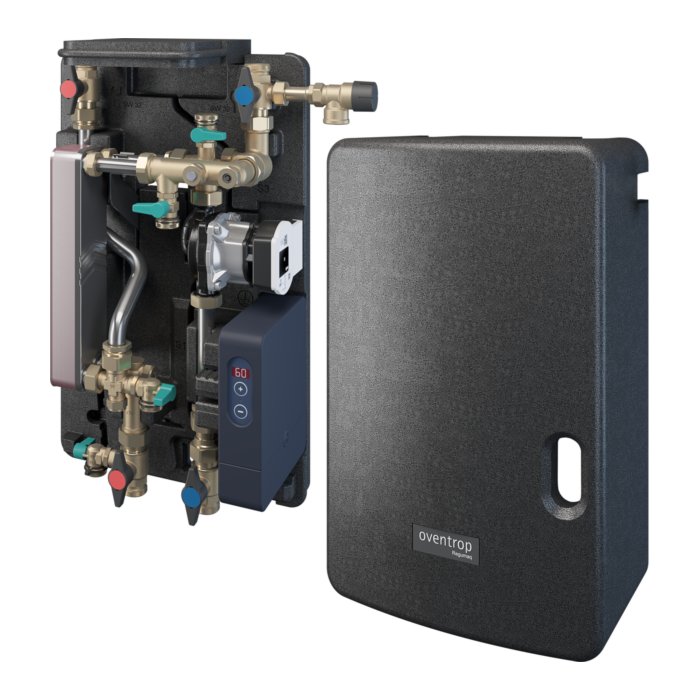

Oventrop Regumaq domestic water station 1381125 400 x 625 x 240 mm, with copper-soldered heat exchanger

Oventrop Regumaq domestic water station 1381125

• Fresh water station with integrated controller box for temperature setting
• with Wilo high-efficiency pump PARA 15-130/8-75/LIN-9
• Heat exchanger 46 plates
• 2000 -25 l/min.
• depending on the set drinking water temperature and existing buffer water temperature
• max. operating pressure ps 10 bar
• max. operating temperature ts 95 °C
• Performance specification according to SPF test procedure
• Dumping capacity 25 l/min for TWW-3K
• TWK = 10 °C
• DHW = 60 °C (set value)
• Tstorage = 75 °C
• Setting range for drinking water temperature: 20-60 °C
• Connection G 2000 flat sealing for connection to the buffer and drinking water circuit
• Drinking water circuit with volume flow sensor
• Safety valve 10 bar
• 2 PT 1000 resistance thermometers
• 2 KFE cocks and ball cocks
• Storage circuit: 2 KFE taps
• ball valves
• circulation pump and check valve
• PT 1000 resistance thermometer

according to Oventrop not available before April 2023
