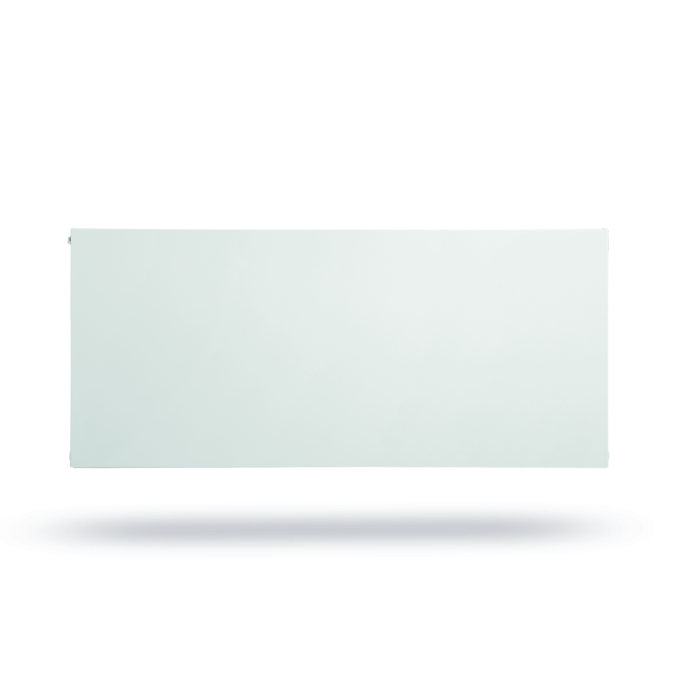

Purmo Plan Ventil-Compact panel radiator F0A210900801130 BH 900 mm, BL 800 mm, right, white
In Stock
delivery time: 1-3 working days
Shipping Cost Points: 3500
Details
Purmo Plan valve compact panel radiator F0A210900801130
- Connections 4x G 2000 /2
- ISO 228
- laterally
- 2x G 2000 /2
- ISO 228
- below
- Distance 50mm
- Valve set connection position on the right
- advance inside
- return outside
- Construction depth 72 mm
- Fastening without tabs with FZ brackets
- Bathroom Radiators fully assembled without decorative cover and side panels
- 2000 /2" as well as blind and ventilation plugs factory-fitted
- Fixings not included in the scope of delivery for a height of 200
- up to a length of 1600 mm 2 fasteners included
- from length 1800 mm with 3 fastenings complete with screws and dowels
- Sheet metal quality FeP0 2000 according to EN 10130
- Nominal sheet thickness according to the requirements of DIN EN 442- 2000
- Front with completely smooth side
- Operating pressure 10 bar
- Test pressure 13 bar
- Coating according to DIN 55900
- KTL primer
- Top layer of epoxy resin powder
- Color RAL 9016 traffic white
- all other RAL colors on request
- Packaging with cardboard edge protection strips on the long side as well as protective corners and shrink film
