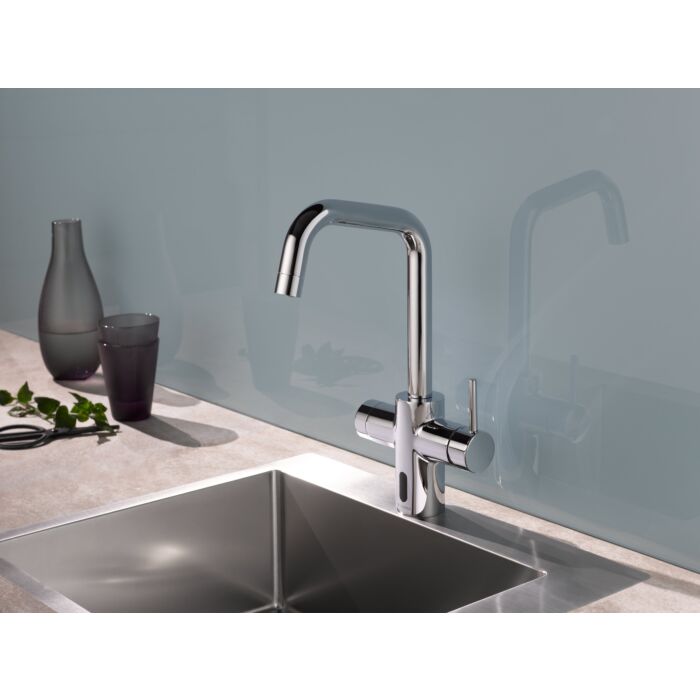

Schell Grandis e electronic kitchen mixer 002430699 with plug-in power supply, 9 V, for mixed water, chrome-plated
In Stock
delivery time: 1-3 working days
Shipping Cost Points: 180
Part Number: 002430699
Details
Schell Grandis e electronic kitchen mixer 002430699
- HD-M
- Infrared sensor controlled and additional single lever operation
- suitable for networking with the SWS water management system
- parameterizable via Single Control SSC
- consisting of kitchen faucet infrared sensor
- electronics
- programmable
- Solenoid valve 6
- Single lever operation
- Ceramic cartridge with hot water limiter
- 2 flexible connection hoses G 3/8 IG x 420 mm with integrated backflow preventer (RV
- DIN EN 1717: EB) and prefilter 250? M
- Swivel spout with adjustable swivel range
- Strahlregler
- Fastening material for single-hole mounting
- Area of application / technical data: Flow rate (manual actuation) max. 10 l / min at 3 bar
- Flow rate (electronic release): max. 8
- 5 l / min at 3 bar
- Rest pressure max. 8 bar
- 2000 pressure match2 -5 bar
- max. water temperature 70 ° C (short-term, e.g. for thermal disinfection, setting options via close-up reflex: max. running time (4-240 s
- 12 program levels)
- Stagnation flush (off / after last flush / fixed interval)
- Setting options via SWS / SSC: programming via local fl ex (off / on)
- max. running time ( 2000 -600 s)
- Stagnation flush (off / on
- 5-600 s
- all 2000 -240 h after the last rinse / all 2000 -240 h)
- Energy saving mode (off / 2000 -254 h after last use)
- made of brass compliant with drinking water regulation
- Noise class: I.
- Certification mark: P-IX 29861 / IO
