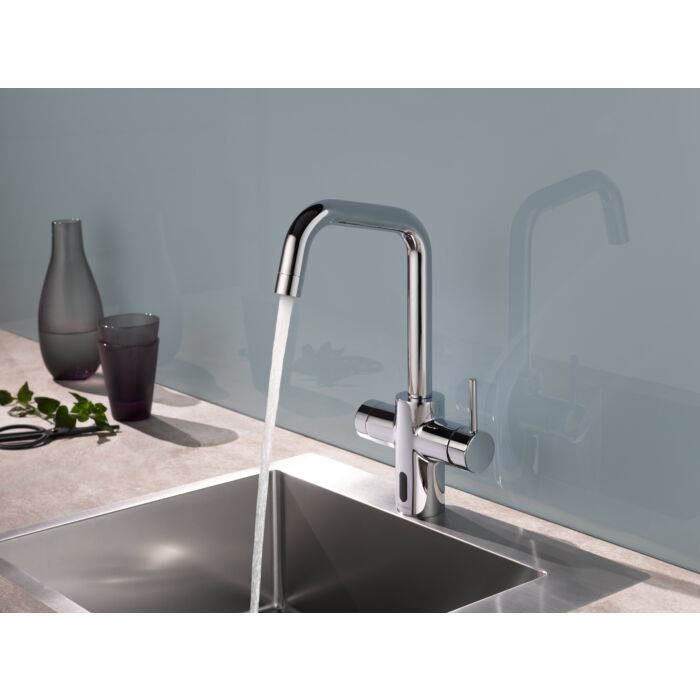

Schell Grandis e electronic kitchen mixer 002440699
  • Infrared sensor controlled and additional single lever operation
  • exclusive power supply
  • intended for networking with the SWS water management system
  • parameterizable via Single Control SSC. Intended for power supply via the SWS water management system
  • consisting of kitchen faucet
  • Infrared sensor
  • electronics
  • programmable
  • Solenoid valve 6 V
  • Single lever operation
  • Ceramic cartridge with hot water limiter
  • 2 flexible connection hoses G 3/8 IG x 420 mm
  • with integrated backflow preventer (RV
  • DIN EN 1717: EB) and pre-filter 250? M
  • swiveling spout with adjustable swivel range
  • Strahlregler
  • Fastening material for single-hole mounting
  • Area of application / technical data: Flow rate (manual release): max. 10 l / min at 3 bar
  • Flow rate (electronic triggering): max. 8
  • 5 l / min at 3 bar
  • Rest pressure max. 8 bar
  • 2000 pressure match2 -5 bar
  • max. water temperature 70 ° C (briefly e.g. for thermal disinfection)
  • Setting options via near reflex: max. Running time (4-240 s
  • 12 program levels)
  • Stagnation flush (off / after last flush / fixed interval)
  • Setting options via SWS / SSC:
  • Programming via near reflex (off / on)
  • max. running time ( 2000 -600 s)
  • Stagnation flush (off / on
  • 5-600 s
  • all 2000 -240 h after the last rinse / all 2000 -240 h)
  • Energy saving mode (off / 2000 -254 h after last use)
  • made of brass compliant with drinking water regulation
  • Noise class I.
  • Approval mark P-IX 29861 / IO
