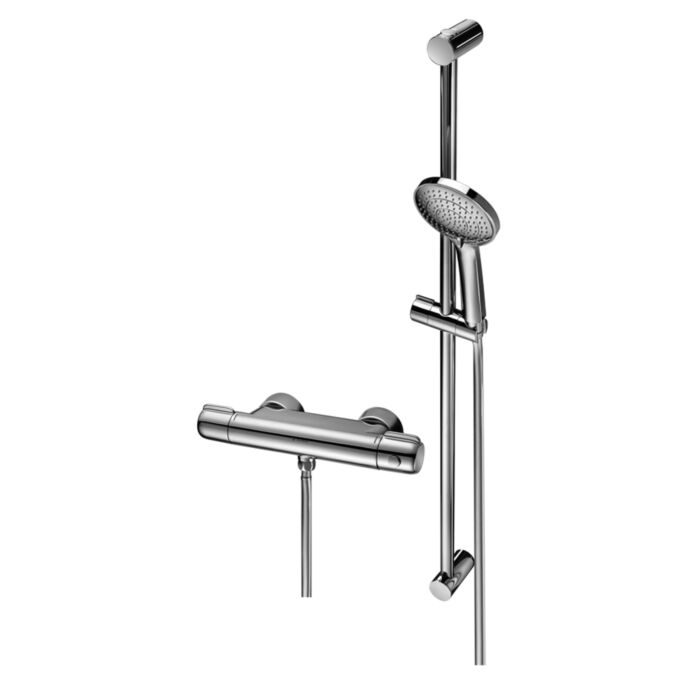

Schell Modus MD-T shower fitting 021860699 jet types Soft, Vital, Power, with shower set

Schell Modus MD-T shower fitting 021860699 with shower set

Technical data

• Jet types: Soft, Vital, Power
• Max. operating temperature: 65 °C (for thermal disinfection 80 °C max. 10 min./day)
• Max. outlet temperature: 38 - 43 °C adjustable
• Material: Housing brass compliant with Drinking Water Ordinance
• Surface: chrome
• Length of shower hose: 1500 mm
• Length of shower rail: 900 mm
• Connection: 2x DN 15 G 2000 /2 AG
• Outlet: DN 15 G 2000 /2 AG (bottom)

scope of delivery

• On/off surface-mounted shower fitting
• Open/close button
• ThermoProtect thermostat according to EN 1111, unlockable/lockable temperature lock 38 °C, scalding protection in case of failure of the cold water supply
• IsoBody housing
• On/off ceramic cartridge
• 2 Non-return valve RV (EN 1717: EB)
• Hand shower with anti-limescale knobs, 3-way adjustable
• Shower hose with anti-twist protection
• 2 S-connectors and rosettes (depth adjustable)
• Shower rail
• Fastening material
