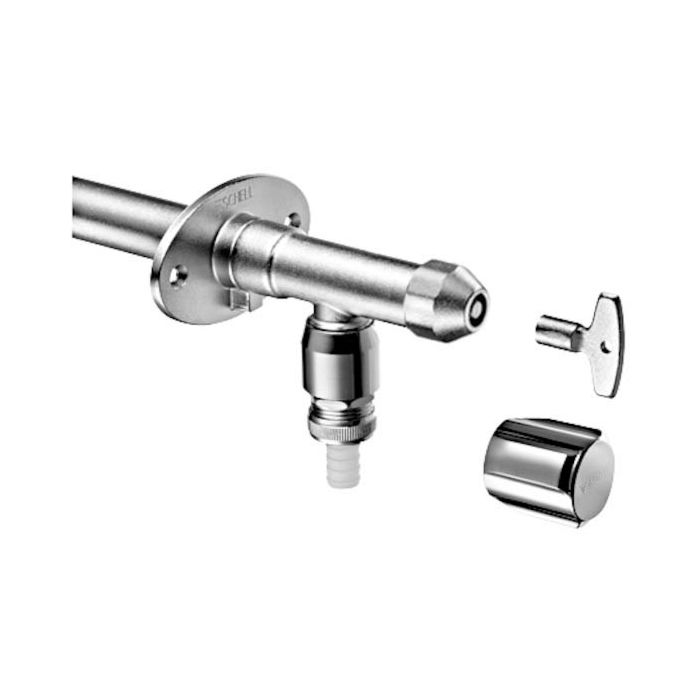

Schell Polar II frost-proof complete fitting with pipe aerator 039960399 DN 15, matt chrome, with pipe aerator

Schell Polar II frost-proof complete fitting with pipe aerator

• Article number: 039960399
• for subsequent installation
• Frost-proof valve seat 200 mm from front edge of facade
• Automatic forced ventilation of the inner tube during each closing process
• Backflow preventer RV
• Pipe aerator RB
• Long valve spindle

Scope of delivery:

• Frost-proof external wall fitting
• Hose fitting
• Insulating hose
• Mounting plug
• Cutting gauges
• Anti-twist wall rosette with internal thread for external wall
• Anti-twist wall rosette with internal thread for interior wall
• Fastening material

• for installation in masonry with min. 200 mm wall thickness
• Bore diameter Ø 38 mm
• made of brass compliant with Drinking Water Ordinance
• Noise class II
• Test mark P-IX 19319/II
• Serial number 03 996 03 99 Pipe aerator type C
• Fuse combination according to EN 1717
• tested according to VP 648
• DVGW registration number CL0257 (complete fitting) and Belgaqua approval
