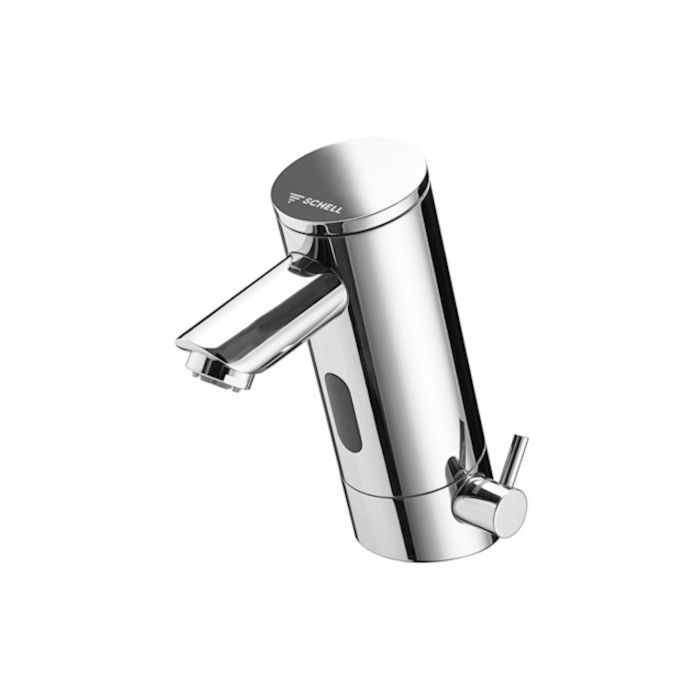

Schell Puris e electronic basin mixer 012150699 chrome-plated, concealed power supply unit, mains operation, for mixed water
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 100
Part Number: 012150699
Details
Schell Puris e electronic basin mixer 012150699
- HD-M
- suitable for networking with SWS
- parameterizable via SSC
- Vandal-proof all-metal design
- Flow rate max. 5 l / min independent of pressure
- 2000 pressure 2000 -5 bar
- Water temperature max. 70 ° C (short-term use)
- adjustable via near reflex
- Short sensor range
- medium
- long
- Stagnation flush program (continuous flow 30 s
- 24 hours after the last
- Use / every 24 hours)
- Duration of continuous flushing for thermal disinfection (continuous flow 300 s / continuous flow 120 s)
- Cleaning stop 60 s
- Setting option with the SSC software
- Max. Running time 2000 -360 s
- 1930
- 6-60 s
- Stagnation time 5-600 s
- Stagnation 2000 -240 h
- Run time for thermal disinfection 15-600 s
- Continuous flow 15-600 s
- Energy saving mode activated 2000 -254 h
- Cleaning stop 60-360 s
- Housing made of brass compliant with German drinking water regulation
- Noise class I.
- Approval mark P-IX 9523 / I
- SVGW 1403-6236
- Belgaqua
- WELL Public
- 100-240 V
- 50-60 Hz
- consisting of: infrared sensor single-hole fitting
- with Temperaturregler
- Programmable electronics module
- Connection cable (250 mm long) with plug, protection class IP 65
- Cartridge solenoid valve 6 V
- 2x flexible connection hoses Clean-Fix SG 3/8 IG x 380 mm with integrated backflow preventer (RV
- DIN EN 1717: EB) and pre-filter
- Strahlregler
- Fixing material for vanity unit
