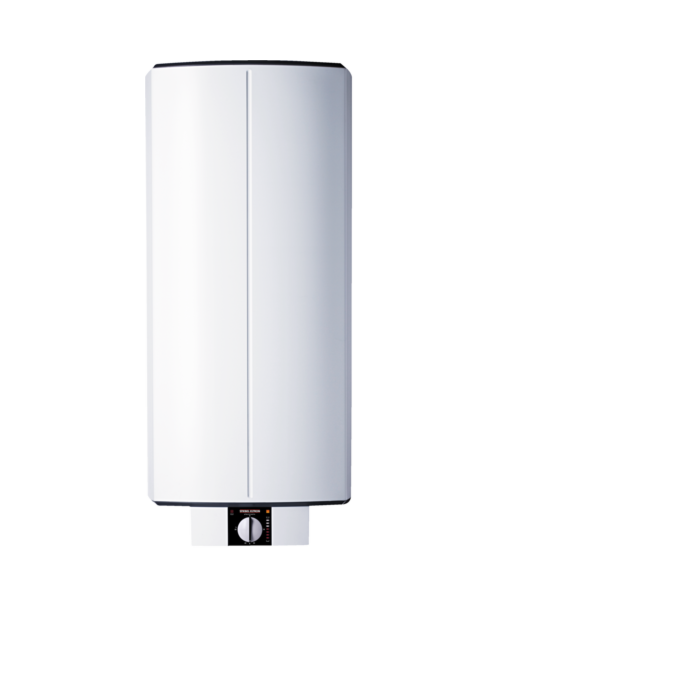

Stiebel Eltron Wandspeicher SH 120 S, 120 l, 1.5-6 kW, white 073051

Technical description: Hot water Wandspeicher for any desired hot water supply. > Closed (flameproof) to supply several outlets. Plumbing also in connection with plastic pipe systems (observe manufacturer's Plumbing and limits of use). > Open (pressureless) to supply a sampling point. Electronic heat content indication with LED display in the control panel. Steel inner container with special direct anticor "emitter and standard equipped with signal anode (anti-corrosion rod) and indicator light in the control panel CFC-free thermal insulation with minimal heat loss Universal flange single-circuit operation The water content is maintained at the set temperature depending on the controller. 35 degrees C to about 82 degrees C, or a temperature limit on the selector knob at 45, 55 and 65 degrees C. Automatic frost protection, signal lamp when heating up, replaceable copper heating flange, radiator connections through complete flange plug, power variants possible, drain valve with hose connection G 3 / Pre-assembled suspension bar also allows mounting in the corner Plumbing with: Sicherheitsgruppe KV 30 or KV 40 with pressure-resistant connection or fitting for open devices with pressure-free connection Quality and safety mark VDE / GS mark, radio protection IP 25 D (Stra hlwassergeschützt) Technical data: Connected load 1,5 to 6 kW Connection 1 / N / PE 230 V Connection 2 / N / PE 400 V Connection 3 / N / PE 400 V Nominal capacity 120 l Water connection G 1/2 Mixed water quantity 40 degrees C 235 l Standby 1930 at 65 degrees C / 24h 1930 , 92 kWh flow rate max. 18 l / min nominal pressure 1930 , 6 MPa inner container (material) steel, email. Type Closed Outer jacket (material) Steel sheet Color White Upper cap (material) Plastic Dimensions and weight: H / W / D in mm 1210/510/510 Weight 45.5 kg

Attention: Power connection (3 ~ / 400V) required. The approval of the local network operator may be required. Installation only by qualified personnel.

Product Safety Chevron Down

Manufacturer
STIEBEL ELTRON GmbH & Co. KG
E-Mail
info-center@stiebel-eltron.de
Address
Dr.-Stiebel-Straße 33
37603 Holzminden
Germany
