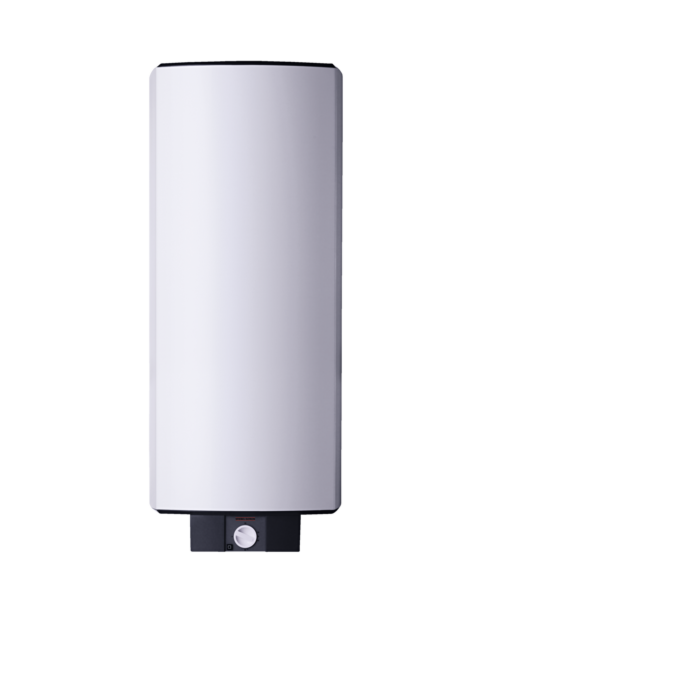

Stiebel Eltron hot water Wandspeicher 2-6 kW, white 073114

Technical description: Hot water Wandspeicher for any desired hot water supply. > Closed (flameproof) to supply several outlets. Plumbing also in connection with plastic pipe systems (observe manufacturer's Plumbing and limits of application). > Open (pressureless) to supply a sampling point. > Boiler mode of operation also possible Steel inner container with special enamelling and anti-corrosion bar, CFC-free thermal insulation with low heat loss. Heating flange dual circuit / single circuit operation. The water content is controlled depending (depending on the selected connection) kept at the set temperature. In boiler operation, the water content is heated once and the heating must be switched on by hand. Stepless temperature setting from approx. 35 degrees C to approx. 82 degrees C possible. For single-circuit operation, automatic frost protection. Signal lamp for boiler operation and rapid heating (once by pushbutton, remote control provided by customer), exchangeable copper heating flange with drainage nozzle. Plumbing with Sicherheitsgruppe KV 30 or KV 40 with pressure-resistant connection or fitting for open devices with pressure-free connection. Quality and safety signs: VDE / GS mark, radio protection IP 24 D (splash- 1930 ) Technical data: 1930 2, 1930 to 6 kW Connection 1 / N / PE 230 V Connection 2 / N / PE 400 V Connection 3 / N / PE 400 V nominal capacity 150 l water connection G 1/2 mixed water quantity 40 degrees C 290 l standby power consumption at 65 degrees C / 24h 1.20 kWh flow rate max. 18 l / min nominal pressure 1930 , 6 MPA inner container (material) steel, email. Type Closed Outer jacket (material) Steel sheet Color White Upper cap (material) Plastic Dimensions and weight H / W / D in mm 1280/510/510 Weight 49, 1930 kg

Attention: Power connection (3 ~ / 400V) required. The approval of the local network operator may be required. Installation only by qualified personnel.
