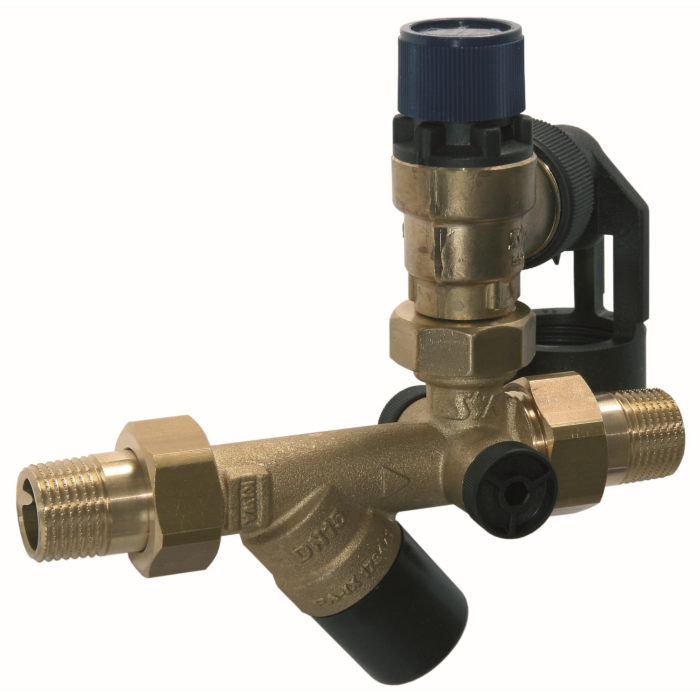

Syr - Sasserath Sicherheitsgruppe 0024.15.010 DN 15, 8 bar, R 3/4, raw yellow
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 100
Part Number: 002415010
Details
Syr - Sasserath Sicherheitsgruppe 0024.15.010
- for the connection of closed drinking water heaters acc. DIN 1988
- DVGW-approved and 2000 sound 2000 in class 2000
- consisting of shut-off valve
- Backflow preventer with test device
- second shut-off valve (DN 20)
- Membrane safety valve with valve seat made of stainless steel and extendable drain funnel
- Pressed brass housing
- Max. Inlet pressure: 10 bar according to DIN EN 1488
- Max. Operating pressure: max. 80% of the response pressure of the safety valve
- Max. Operating temperature: 30 ° C
- Medium: drinking water
- Installation position: any
- Response pressure: 6
- 8 or 10 bar
- Max. Nominal volume TWE: DN 15: 200 l / DN 20: 2000 000 l
- Max. Heating capacity: DN 15: 75 KW / DN 20: 150 KW
- Component identification: TÜV-SV-10-545-DN-WNp
- ABP no .: PA-IX 1794 / I
Downloads (7)
Product Safety
Manufacturer
Hans Sasserath GmbH & Co. KG
E-Mail
sasserath@syr.de
Address
Mühlenstraße 62
41352 Korschenbroich
Germany
