TECE fire protection set 660006 TECEdrainline FireStop El 120, DN 50
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 10
Part Number: 660006
Details
TECE fire protection set 660006 TECEdrainline
Fire protection set for direct mounting
at the outlet TECEdrainline DN 50 vertical,
to the highly fire-resistant foreclosure of
Ceiling ducts in solid ceilings up to
120 min., Classification according to DIN EN
13501 for the fire protection class EI 120,
European Technical Approval
(ETA-11/0437)

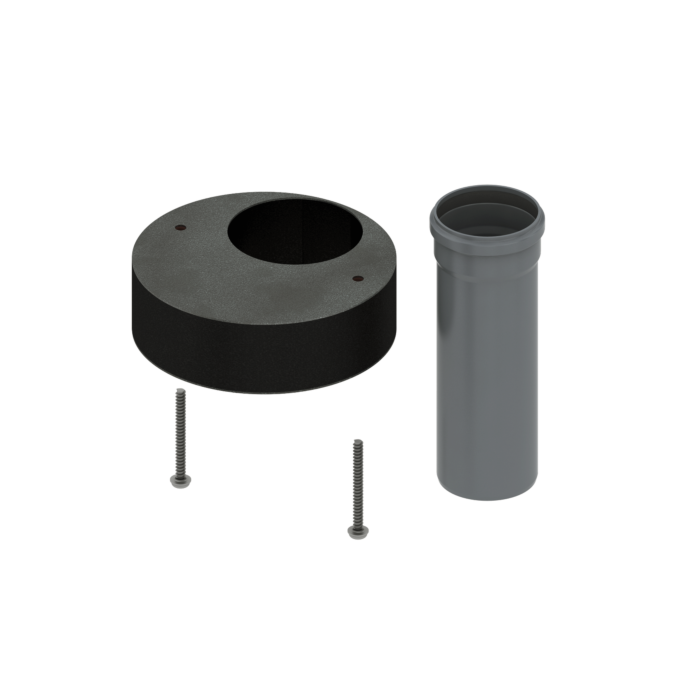

Set consisting of:
- fire protection sleeve, 2
Phillips screws
Label, 150 mm DN 50 PP-HT
Pipe according to DIN EN 1451
- Required core hole: diam.
130 mm (diameter min = 129 mm, diam.
max = 133 mm)
- Application: Solid ceilings of
150 mm to 325 mm ceiling thickness
- No mortaring or backfilling of the
Interspace necessary
- Compatible with all TECEdrainline
Gutters and covers
Order No .: 660006
Fire protection set for direct mounting
at the outlet TECEdrainline DN 50 vertical,
to the highly fire-resistant foreclosure of
Ceiling ducts in solid ceilings up to
120 min., Classification according to DIN EN
13501 for the fire protection class EI 120,
European Technical Approval
(ETA-11/0437)
Set consisting of:
- fire protection sleeve, 2
Phillips screws
Label, 150 mm DN 50 PP-HT
Pipe according to DIN EN 1451
- Required core hole: diam.
130 mm (diameter min = 129 mm, diam.
max = 133 mm)
- Application: Solid ceilings of
150 mm to 325 mm ceiling thickness
- No mortaring or backfilling of the
Interspace necessary
- Compatible with all TECEdrainline
Gutters and covers
Order No .: 660006
