TECE TECElinus shower channel set 15150070 length 700 mm, flat, 2 in 2000

TECE TECElinus shower drain set 15150070

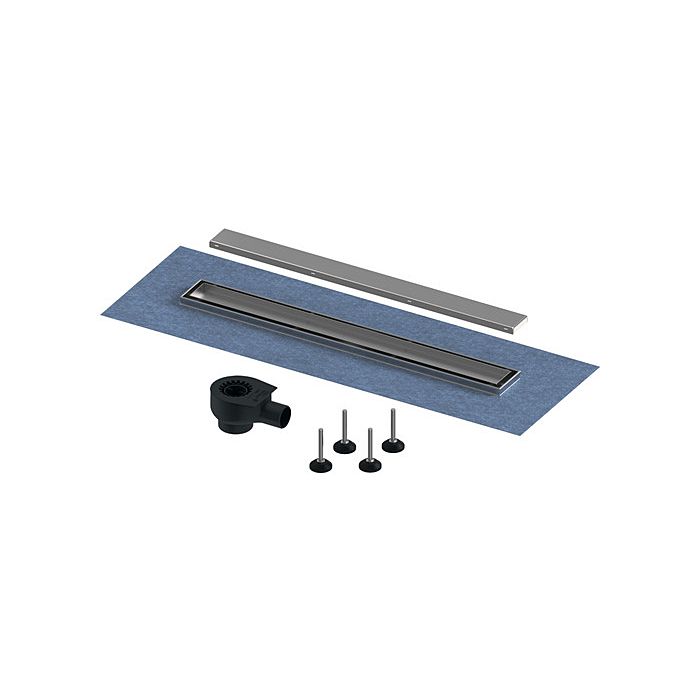

TECElinus Plus shower channel set, drain "Norm", grate "2 in 2000 "

Shower channel set for connection to DN 50 waste water pipes, for installation in screed, with factory-attached sealing sleeve for connection to composite seals, with reversible grate cover "2 in 2000 " (brushed stainless steel look or can be tiled).

Consisting of: Gutter body made of polished stainless steel, material 2000 .4301 (304) with factory-fitted sealing sleeve

central connection piece for connecting the drain

Drain DN 50 with side outlet nozzle, 360 degree rotatable, 50 mm water seal height, drainage capacity 1930 l/s (according to DIN EN 1253)

Factory-attached sealing sleeve for on-site integration into the composite seal

Mounting feet for height alignment and position fixing of the gutter, stepless height adjustment up to 125 mm (lower edge of mounting feet to upper edge of gutter)

Cover reversible grate "2 in 2000 " for insertion into the channel body, made of stainless steel, loadable according to load class K3 - test load 300 kg, for use either as a brushed stainless steel cover or as a tile trough for gluing tiles on site with elastic adhesive, e.g. silicone or epoxy resin adhesive. Attention :Check adhesive for tile compatibility!

Nominal length: 700 mm

• Order no.: 15150070
