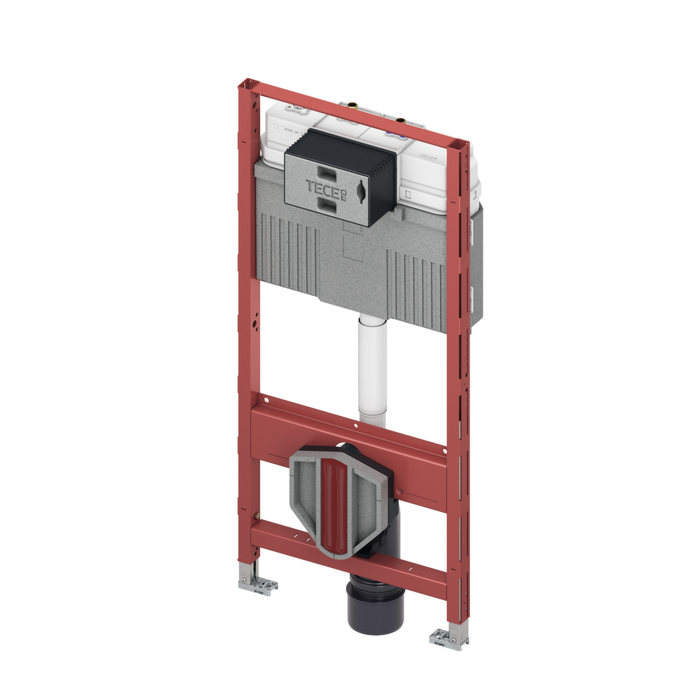

TECE TECEprofil WC module 9300 100 1120 mm, with Uni cistern, with hygiene flush function
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 400
Part Number: 9300100
Details
TECE TECEprofil WC module 9300100
- for attachment to TECEprofil profile tubes or for installation in metal or wooden stud walls and as a front-wall or corner module
- also suitable for single block assembly
- completely pre-assembled unit
- Consists of a Uni cistern for front actuation
- Safety tank made of impact-resistant plastic
- Cistern completely pre-assembled and sealed
- 2000 with match3 / 2 "external thread
- 10 liter tank volume
- 6 liters preset standard flush volume
- 4th
- 5/7
- 5/9 liter flush volume optionally adjustable at any time
- 3 liter partial flush with dual flush technology
- Remaining volume can be used for immediate cleaning rinse
- condensation insulated
- for TECE - Betätigungsplatten and WC - Bathroom taps
- Can be used as a single or dual flush cistern depending on the flush plate
- tested according to DIN EN 14055
- 2000 fittings group according to DIN 4109
- low-noise hydraulic filling valve
- Rinsing unit with hygiene rinsing function
- self-supporting mounting frame
- powder coated
- two retaining bolts and nuts M12
- WC bend DN 90 with transition adapter DN 90/100 made of PP
- Transition adapter also suitable for horizontal installation
- WC - connection set DN 90
- including protective plugs
- Adjustment of a raised ceramic attachment for a seat height of approx. 48 cm
- possible according to DIN 18040
