TECE TECEprofil WC module 9300366 WH 1340 mm, with cistern, connection for wall fitting
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 400
Part Number: 9300366
Details

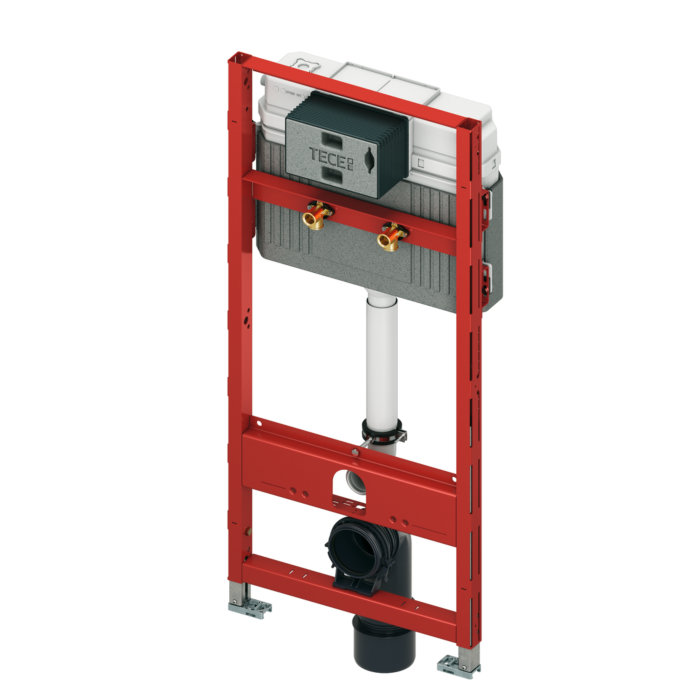

TECE TECEprofil WC module 9300366
- for Geberit Espital
- for attachment to TECEprofil tubes or for installation in metal or wooden stud walls and as a pre-wall or corner module
- Completely pre-assembled unit
- TECE UP cistern for front actuation. Safety tank made of plastic
- Cistern completely pre-assembled and sealed
- 2000 with match5 / 2 "IG
- 10 l tank volume
- 6 l preset standard flush volume
- 4th
- 5/7
- 5/9 l flush volume can be optimally adjusted at any time
- 3 l partial flush with dual flush technology
- Remaining volume can be used for immediate cleaning rinsing
- condensation insulated
- Can be used as a single or dual flush cistern depending on the flush plate
- tested according to DIN EN 14055
- 2000 fitting group according to DIN 4109
- Low-noise hydraulic filling valve L (ap) <= 17 dB ( A ) at 3 bar flow pressure
- Module consisting of a self-supporting assembly frame with a powder-coated surface
- 2 adjustable footrests for a floor structure of 1930 -200 mm
- 2 pre-assembled and 2000 decoupled match5 / 2 "x 2000 / 2" wall panels to accommodate AP Bathroom taps
- 2 retaining bolts and nuts M 12
- Mounting spacing 180 or 230 mm
- WC bend DN 90 with adapter DN 90/100 made of PP
- Transition piece also suitable for horizontal installation
- WC connection set DN 90 including protective plug
- Dimensions 1340 mm x 500 mm x 176 mm
