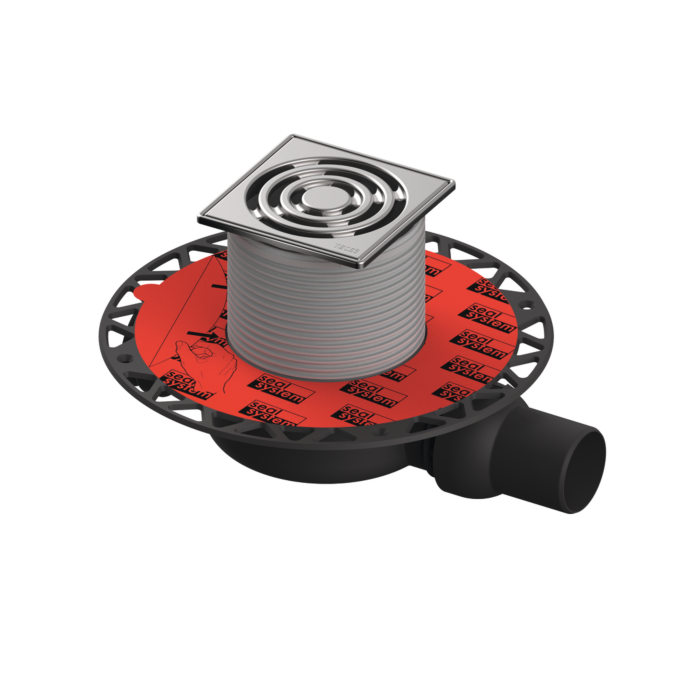

TECEdrainpoint S 112 Drain set super flat 3601102
  • Item number 3601102
  • superflach
  • horizontal
  • Drain body DN 50 horizontal, super flat, made of plastic (PP)
  • with universal flange for connection of composite seals or clamping flange connections
  • with ball joint
  • with side inlet DN 40 incl. sealing plug
  • with removable 2-stage membrane odor trap
  • 20 mm sealing water and additional sealing lip membrane
  • Attachment made of plastic (ABS) and O-ring seal
  • Grate frame made of drawn stainless steel, material 1.4301 (304) for grid dimensions 100 x 100 mm
  • TECEdrainpoint S Design grate made of drawn stainless steel, material 1.4301 (304), dimension 100 x 100 mm, surface polished, load class K3 (load capacity up to 300 kg)
  • Drainage capacity according to DIN EN 1253 with 10/20 mm damming height above grate
  • with minimum height of the 1930 : 1930 , 51 / 1930 , 61 l / s
  • at the maximum height of the 1930 : 1930 , 56 / 1.23 l / s
  • Delivery including construction protection cover, construction film and assembly instructions
