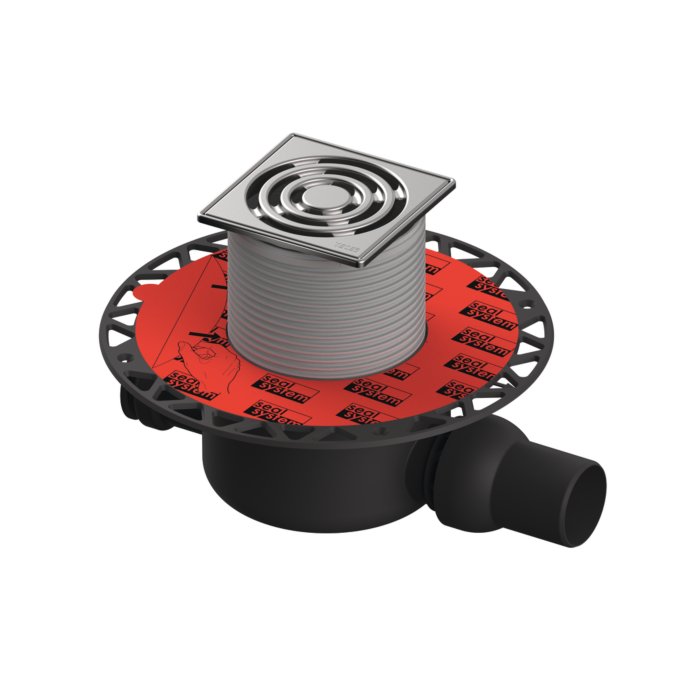

TECEdrainpoint S 122 drain set standard 3601202 100x100mm, DN50, universal flange, stainless steel frame
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 100
Part Number: 3601202
Details
TECEdrainpoint S 122 drain set standard 3601202
- Item number 3601202
- Drain set standard with Seal System universal flange and stainless steel frame
- Floor drain TECEdrainpoint S 122 horizontal
- Standard DN 50
- Stainless steel frame with stainless steel grate and 2-stage membrane odor trap
- Drain body DN 50 horizontal, standard, made of plastic (PP)
- with universal flange for connection of composite seals or clamping flange connections
- with ball joint
- with side inlet DN 40 incl. sealing plug
- with removable 2-stage membrane odor trap
- 50 mm sealing water acc. DIN EN 1253 and additional sealing lip membrane
- Attachment made of plastic (ABS) and O-ring seal
- Grate frame made of drawn stainless steel, material 1.4301 (304), for grid dimensions 100 x 100 mm
- TECEdrainpoint S Design grate made of drawn stainless steel, material 1.4301 (304), dimension 100 x 100 mm, surface polished, load class K3 (load capacity up to 300 kg)
- Drainage capacity according to DIN EN 1253 with 10/20 mm damming height above the grate:
- with minimum height of the 1930 : 1930 , 54 / 1930 , 85 l / s
- at the maximum height of the 1930 : 1930 , 71 / 1.35 l / s
