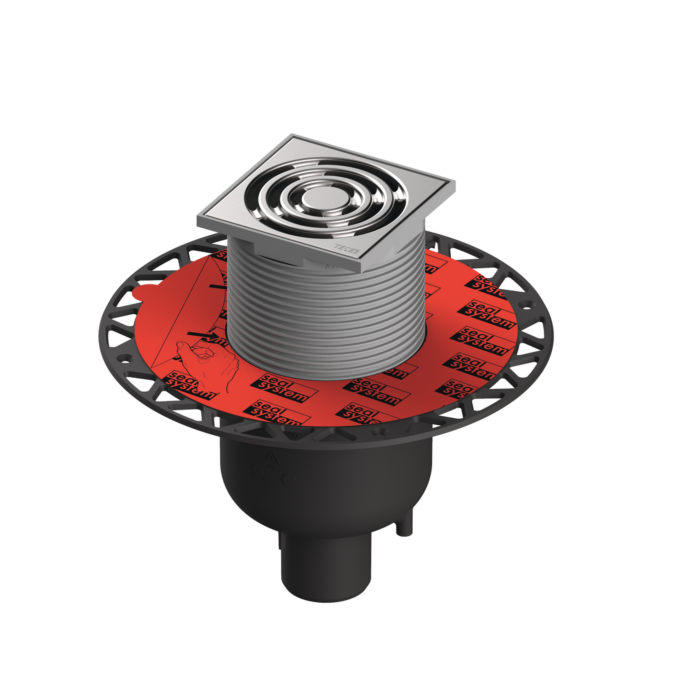

TECEdrainpoint S 130 drain set 3601300
  • Item number 3601300
  • perpendicular
  • with universal flange
  • Drain body DN 50 vertical made of plastic (PP)
  • with universal flange for connection of composite seals or clamping flange connections
  • with removable odor trap
  • Sealing water height = 50 mm acc. DIN EN 1253
  • Top section with plastic grate frame (ABS) and O-ring seal
  • TECEdrainpoint S Design grate made of drawn stainless steel, material 1.4301 (304), dimension 100 x 100 mm, surface polished, load class K3 (load capacity up to 300 kg)
  • Drainage capacity according to DIN EN 1253 with 10/20 mm damming height above grate
  • with minimum height of 1930 : 1930 , 64 / 1.36 l / s
  • at maximum height of 1930 : 1930 , 70 / 1,56 l / s

Downloads (1) Chevron Down

Product Safety Chevron Down

Manufacturer
TECE GmbH
E-Mail
info@tece.de
Address
Hollefeldstraße 57
48282 Emsdetten
Germany
