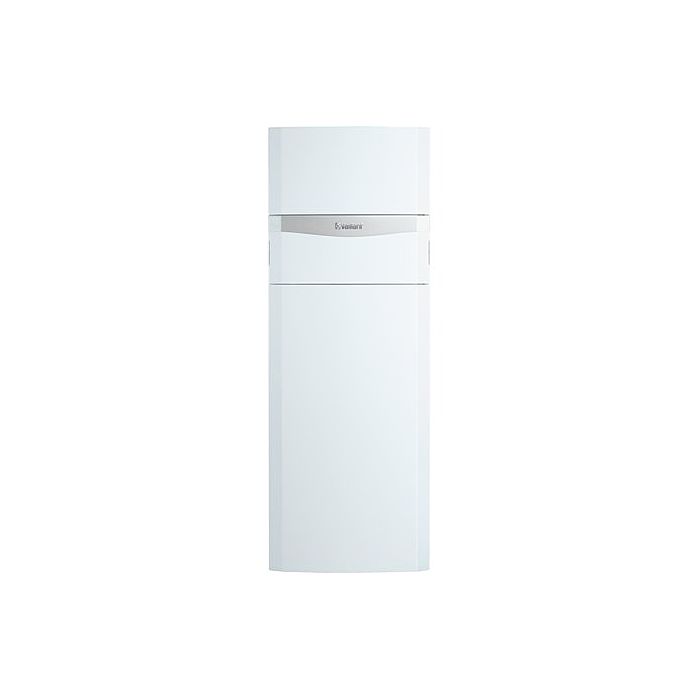

Vaillant auroCOMPACT gas compact device 0010015614 VSC S 206/4-5 190, with condensing technology, natural gas E

Vaillant auroCOMPACT gas compact device 0010015614

• High efficiency Pumps for Bathroom Heating and storage charge
• self-optimizing solar pump group with high-efficiency pump
• electronic gas-air ratio
• up to 3 VFK flat collectors can be connected
• all components/accessories in one housing
• Consisting of integrated WW solar stratified storage tank with protective magnesium anode (150 liters) and solar heat exchanger
• Stainless steel secondary heat exchanger
• High-efficiency charging and heating pump Priority switching valve
• water pressure sensor
• Flow rate sensor and Manometer
• 15 liters ADG and collector sensor
• Integral condensing heat exchanger made of stainless steel
• overflow valve
• Integrated solar control
• modulating high efficiency solar pump
• Solar ADG (6L/18L)
• Solar collection tank (4.8L/7.5L)
• Solar safety valve (6bar)
• Volumetric flow sensor for solar circuit
• DHW thermostatic mixer (scald protection)
• manual air separation system for solar circuit
• Filling and draining device for solar circuit
• gas type E
• Rated power range 40/30 °C/3.4-15.2 kW
• 60/40 °C/3.3-14.7 kW
• Storage charging power 16, 1930 KW
• maximum heat load Speicher 16.3 KW
• Standard efficiency 98% (Hs)/109% (Hi)
• Modulation range from 20 to 100%
• Flow temperature maximum 85 degrees C
• Electrical connection 230V/50Hz
• maximum electrical power consumption 70 W
• Flow/return connection Rp 3/4
• Cold/hot water connection Rp 3/4
• Gas connection Rp 3/4
• Air/exhaust connection 60/100 mm
• Weight (empty) 159 kg
• Speicher - total capacity 150 l
• Height/width/depth 1640/595/693 mm
• Power connection (3~/400V) required. Local network operator approval may be required. Installation only by qualified specialists.
• Warning: Gas appliances may only be installed by qualified personnel
• Attention: The device may only be installed with the original exhaust gas accessories from Vaillant !!
