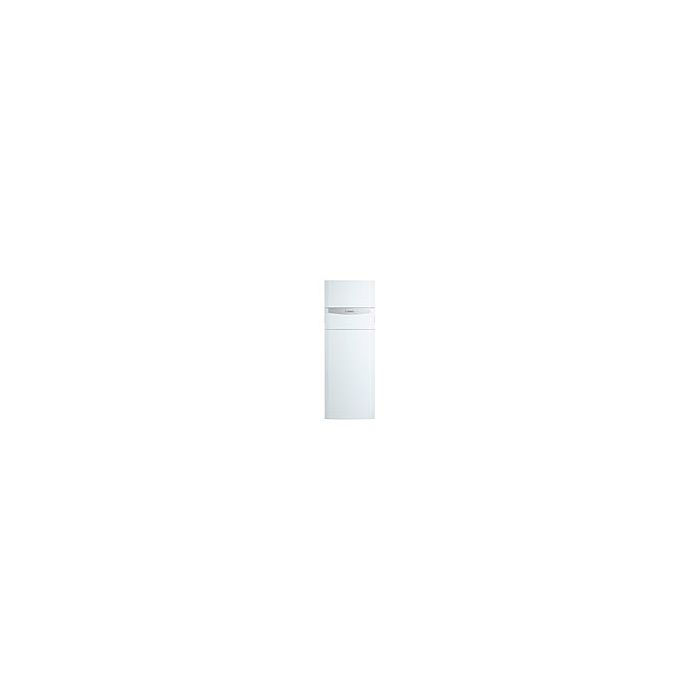

Vaillant ecoCOMPACT gas compact device 0010015604 VCC 206/4-5 150, with condensing technology

Vaillant ecoCOMPACT gas compact appliance 0010015604

• Combination device for Bathroom Heating and hot water
• High efficiency Pumps for Bathroom Heating and storage charge
• Electronic gas-air ratio
• Multi-sensor system
• all components/accessories in one housing
• Split mounting concept
• Consisting of integrated WW coiled tubing storage (150 liters)
• Stainless steel secondary heat exchanger
• High efficiency charging and circulation pump
• priority switching valve
• pressure sensor
• 15 liters ADG
• Integral condensing heat exchanger made of stainless steel
• Integrated memory control
• DIA system with illuminated symbol display and installation option for a weather-compensated heating controller calorMATIC VRC 700 gas type E
• 40/30°C
• 4.3-21.6kW
• 60/40ºC
• 4, 2000 -20.8KW
• Storage charging power 24, 1930 KW
• max. heat load memory 24.5KW
• Standard efficiency 98% (Hs)/109% (Hi)
• Modulation range from 20 to 100%
• Flow temperature max. 85 °C
• Electrical connection 230V/50Hz
• max. electr. Power consumption 70 W
• Flow/return connection Rp 3/4
• Cold/hot water connection Rp 3/4
• Gas connection Rp 3/4
• Air/exhaust connection 60/100 mm
• Weight (empty) 140 kg
• Speicher - total capacity 150 l
• Height/width/depth 1640/595/693 mm
• Seasonal space heating energy efficiency A (spectrum A ++ to G)
• Seasonal water heating energy efficiency A (range A to G)
• Power connection (3~/400V) required. Local network operator approval may be required. Installation only by qualified specialists.
• Warning: Gas appliances may only be installed by qualified personnel
• Attention: The device may only be installed with the original exhaust gas accessories from Vaillant !!
