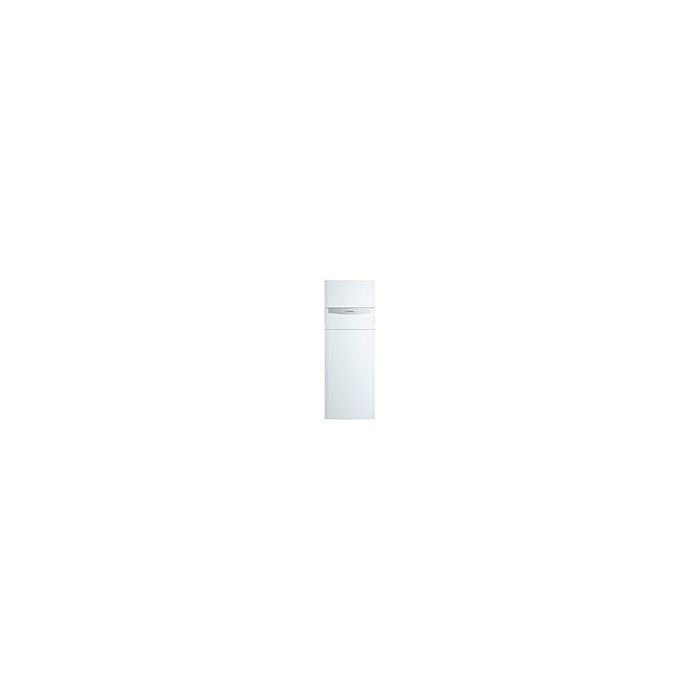

Vaillant VCC 266/4-5 150 ecoCOMPACT compact gas device 0010015607 with condensing technology

Vaillant ecoCOMPACT gas compact device 0010015607

• Combination device for Bathroom Heating and hot water
• High efficiency Pumps for Bathroom Heating and storage charging
• Electronic gas-air combination
• Multi-sensory system
• all components/accessories in one housing
• Split mounting concept
• consisting of integrated WW coiled pipe storage (150 liters)
• Stainless steel secondary heat exchanger
• High efficiency charging and circulation pump
• Priority switching valve
• Pressure sensor
• 15 liters ADG
• Integral condensation heat exchanger made of stainless steel
• Integrated storage control
• DIA system with illuminated symbol display and installation option for a weather-compensated heating controller calorMATIC VRC 700 gas type E
• 40/30°C 4.3-21.6 kW
• 60/40 °C 4, 2000 -20.8 kW
• Storage charging power 24, 1930 KW
• max. heat load. Storage l. 24.5 KW
• Standard utilization level 98% (Hs)/109% (Hi)
• Modulation range from 20 to 100%
• Flow temperature max. 85 °C
• Electrical connection 230V/50Hz
• max. electrical Power consumption 70 W
• Flow/return connection Rp 3/4
• Cold/hot water connection Rp 3/4
• Gas connection Rp 3/4
• Air/exhaust connection 60/100 mm
• Weight (empty) 140 kg
• Speicher -Total content 150 l
• Performance indicator NL 2.4
• Height/width/depth 1640/595/693 mm
• Power connection (3~/400V) required. The consent of the local network operator may be required. Assembly only by qualified specialist personnel.
• Attention: For gas appliances, installation should only be carried out by qualified specialist personnel
• Attention: The device may only be installed with the original exhaust accessories from Vaillant !!
