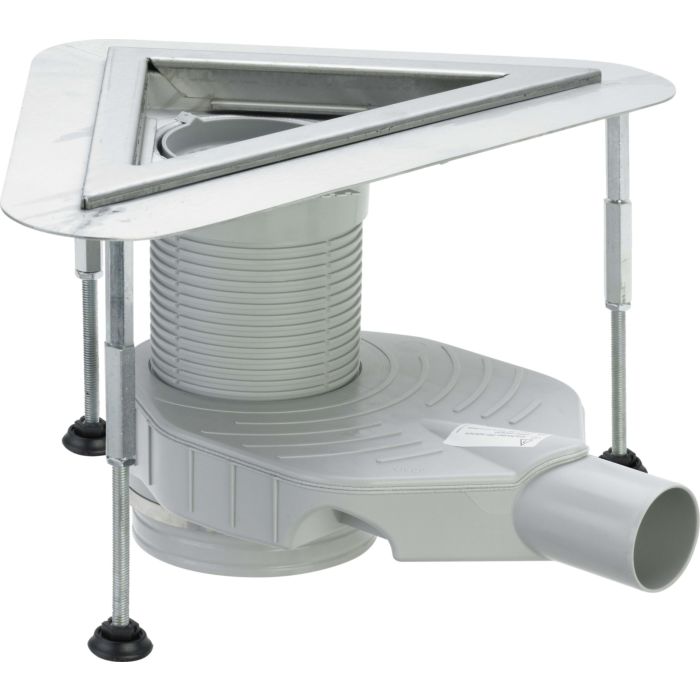

Viega Advantix corner drain basic body 627010 DN 40/50, stainless steel, matt, WH 110-200mm, straight
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 100
Part Number: 627010
Details
Viega Advantix corner drain basic body 627010
- for composite sealing (tiled shower) with sealing membrane
- without wall plate
- Adjustable foot set
- Rahmen height and side adjustable
- Sealing water safe from back suction and adjustable from 35-50 mm
- The connection line can be cleaned
- Removable immersion tube
- Sieve insert
- Height adjustment piece
- Sealing flange
- Fastening material
- Schlüter-KERDI sealing tape with adhesive
- Load class K = 300 kg
- Drainage capacity accumulation height 10 mm 1930
- 75- 2000
- 75 l / s
- Drainage capacity accumulation height 20 mm 1930
- 8- 2000
- 2000 l / s
- quality monitored according to DIN EN 1253
Downloads (1)
Product Safety
Manufacturer
Viega GmbH & Co. KG
E-Mail
webmaster@viega.de
Address
Viega Platz 1
57439 Attendorn
Germany
