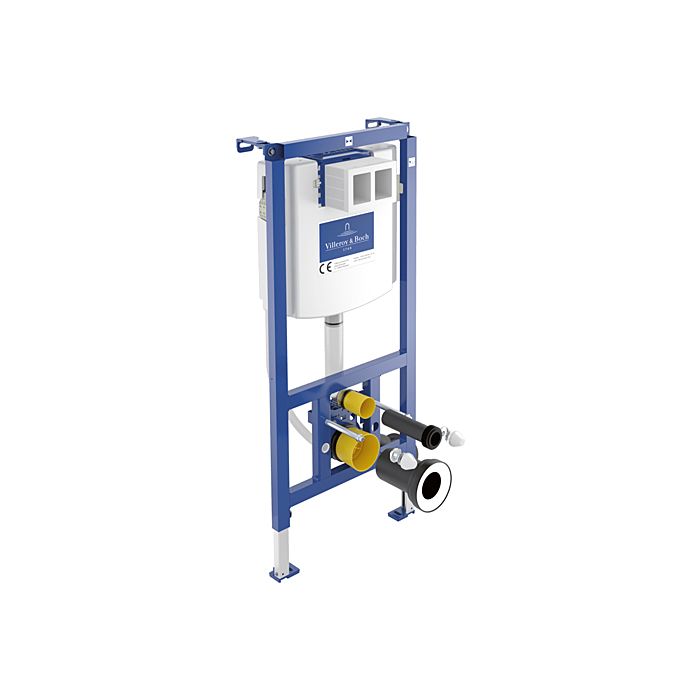

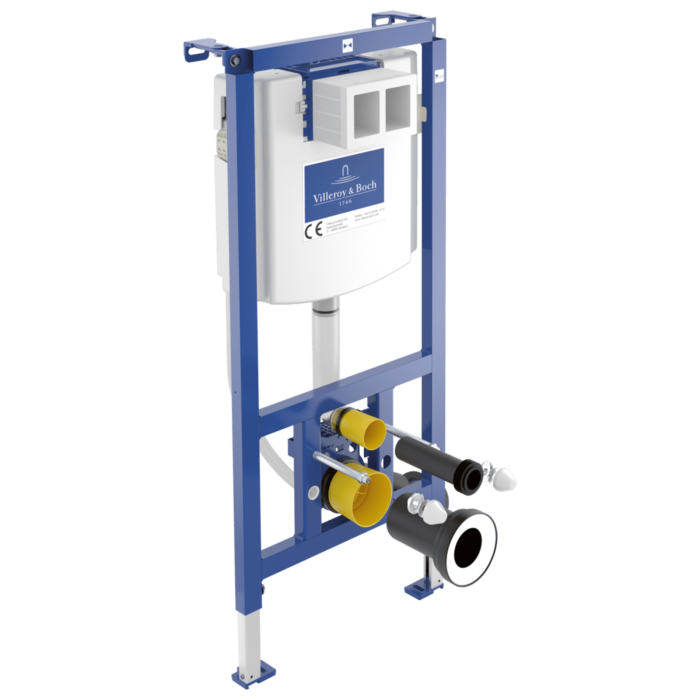

Villeroy und Boch ViConnect WC element 92242700 52.5 x 112 x 13.5 cm, for drywall
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 500
Part Number: 92242700
Details
Villeroy und Boch ViConnect WC 92242700
- self-supporting
- powder-coated steel frame construction
- completely pre-assembled
- actuation from the front
- with small inspection opening
- tested according to DIN EN 14055
- for wall WC
- for dry lining
- Installation in front of a solid wall
- in lightweight stand walls and much more
- Connection to the flush plate via cable technology with turn-click connection
- Feet adjustment range from unfinished floor to OKFFB 1930 -20 cm
- Depth adjustment front edge element 13
- 5-20
- 5 cm
- 4 wall mounting points
- Condensation-insulated concealed cistern with dual flush (7th
- 5-4
- 5L / 4-2L)
- Factory setting 6/3 l
- Filling valve fittings group I
- 2-part corner valve connection set R1/2
- Drain bend clamp with 4 adjustment positions
- PE WC connection elbow DN 90 (Ø 90) with adapter sleeve DN 90 (Ø 90) / DN 100 (Ø 110) with building protection
- WC connection set DN 90 (Ø 90) / 18 cm complete
- Protection box can be shortened for inspection opening
- flexible hose to the filling valve can be screwed on by hand
- adjustable flushing flow restrictor for adaptation to rimless WC basins
- Test mark for concealed cistern: fittings group I
- with 2 wall brackets
- with self-locking feet with adjustable foot plates and fastening material
- 2 WC bolts M12 adjustable 18/23 cm with protection and nuts
- assembly Instructions
- without actuation plate
- Packing in carton
