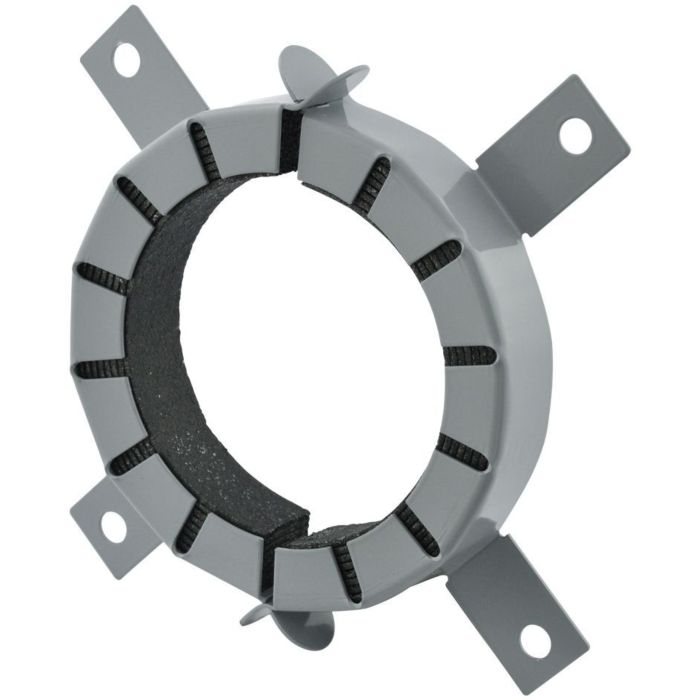

Walraven Pacifyre fire protection sleeve 2134040042 20-40mm, for flammable pipes
Short notice delivery
delivery time: 10-28 working days
Shipping Cost Points: 5
Details
Walraven Pacifyre fire protection sleeve 2134040042
- for sealing off combustible pipes and insulated multilayer pipes in R90 quality according to DIN 4102-11 or EI120 acc. EN 13501 on walls (solid walls and light partition walls) with fire protection requirements according to MBO or MLAR / LAR / RbALei
- Synthetic rubber 9-43 mm depending on the outside diameter of the pipe or PE sound insulation hose up to 4 mm for sewage pipes
- Socket sealing with straight ducts up to an outer pipe diameter of 10 mm
- very low installation height
- Angled feed-throughs possible
- Sealing of pneumatic tube systems or protective pipe systems with up to 2x cables possible
- suitable for installation in damp rooms
- to be mounted on both sides of the wall or on the underside of the ceiling
- flexible annular gap closure
- offset cuff installation allowed
- Installation possible without additional fastenings
- by bending and pushing the tabs into the fresh concrete or mortar
- Zero distance between the same cuffs possible
- Approved by the German Institute for Building Technology (DIBt) according to Z-19.17-1194 and externally monitored by the MPA Braunschweig
- European verification: ETA-13-0906
