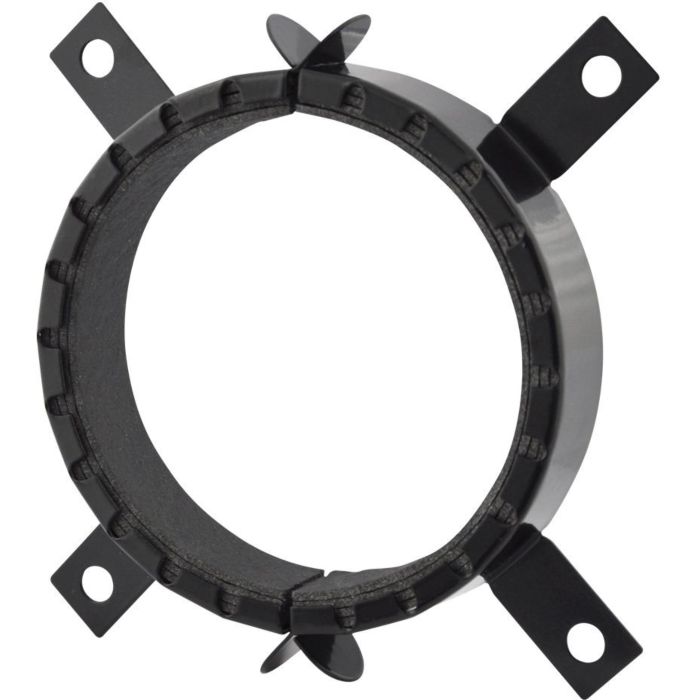

Walraven Pacifyre fire protection sleeve 2135110112 63-110 mm, 4 fastening straps, for flammable pipes
In Stock
delivery time: 1-3 working days
Shipping Cost Points: 5
Details
Walraven Pacifyre fire protection sleeve 2135110112
- for sealing off combustible pipes in R90 quality according to DIN 4102-11 or EI120 acc. EN 13501 on walls (solid walls and light partition walls) and ceilings with fire protection requirements according to MBO or MLAR / LAR / RbALei
- Socket sealing with a straight passage vis-a-vis the pipe outer diameter 110 mm
- very low installation height
- suitable for installation in damp rooms
- to be mounted on both sides of the wall or on the underside of the ceiling
- Inclined guides possible
- Installation possible without additional fastenings
- by bending and pushing the tabs into the fresh concrete or mortar
- for standard installation situations
- In difficult installation situations, the sleeve can be chosen up to three dimensions larger
- multi-part cuff
- Slanted penetrations possible (max. Up to a sleeve size of 160 mm)
- Zero distance between the same cuffs possible
- Approved by the German Institute for Building Technology (DIBt) according to Z-19.17-1651 and externally monitored by the MPA Braunschweig
