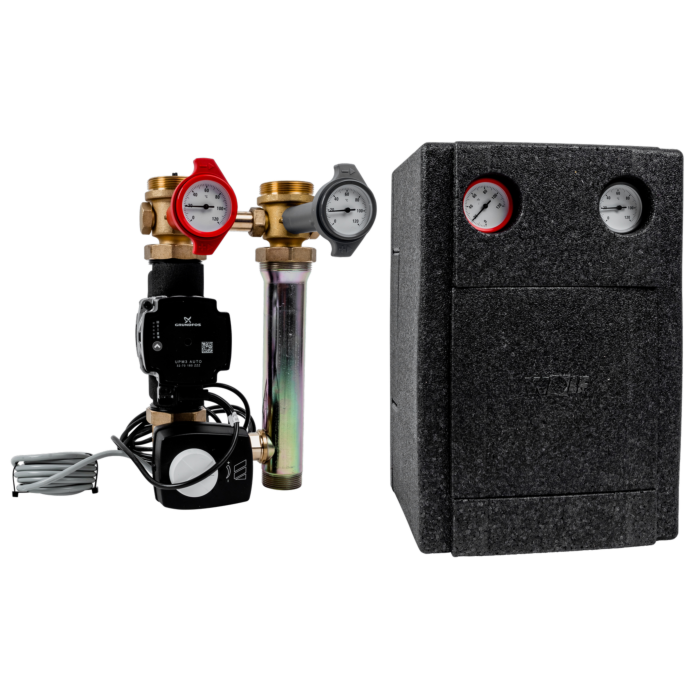

Wolf piping group mixer circuit 2072140 DN 32-60, with high-efficiency pump, self-regulating
In Stock
delivery time: 1-3 working days
Shipping Cost Points: 50
Details
Wolf piping group mixer circuit 2072140
- Flow rate control depending on the required heating water flow rate
- consisting of: high-efficiency pump
- self-regulating
- mounted mixer motor
- both wired ready to plug in with 4 m Kabel
- 3-way brass mixer DN 25 kvs=10
- DN 32 kvs=18
- drip-tight at zero position
- adjustable bypass
- simple exchange of flow from left to right using a continuous mixer spindle
- above Thermometer into both multifunction Discharge Valves
- Ball valves red and blue (under the thermal insulation shell)
- Gravity brake can be set up by 45° position of the thermal handle on the front end
- without overflow valve
- Connections at the bottom flat- 2000 2000 /2" detachable transition screw connection at the top to 2000 " (DN 25) or 2000 2000 /4" (DN 32)
- Design thermal insulation shells made of EPP
- short overall height (355 mm)
- completely tightly screwed
- hydraulically and electrically tested
