Zehnder Forma Asym Design- Bathroom Radiators ZF800360G600000 LFAL-150-060-05, 1441 x 596 mm, Telegrey 2, RAL 7046
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 3200
Details

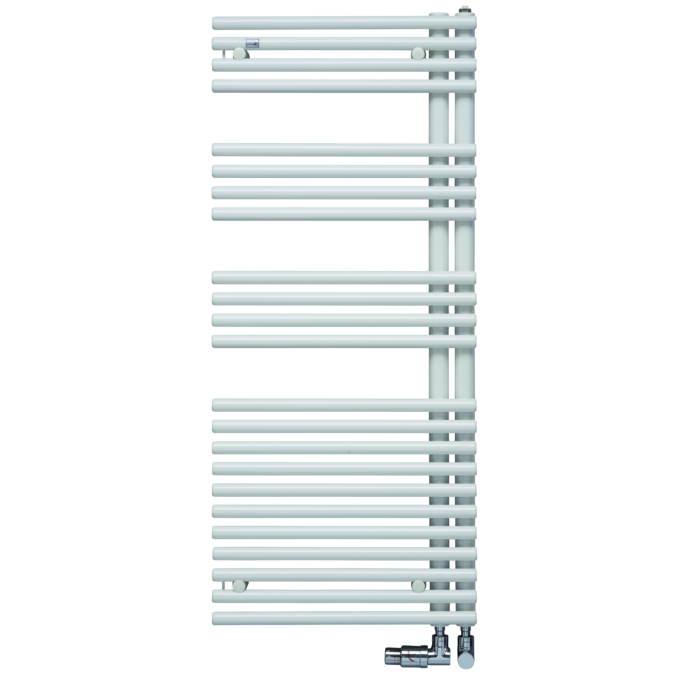

Zehnder Forma Asym Design- Bathroom Radiators ZF800360G600000
- Left
- Connection to hot water central heating with center connection 50 mm
- made from horizontally arranged precision steel tubes welded onto vertical round tubes
- Invisible connection through cross-hole welding process
- Horizontal pipes branching off asymmetrically from the laterally arranged collectors
- horizontal steel pipes Ø 25 mm
- vertical collecting pipes Ø 38 mm
- Thermal performance tested according to EN 442
- with CE marking
- with connections at the bottom 2x 2000 /2" for flow/return
- Hub distance 50 mm
- with additional middle connection 2x 2000 /2"
- Distance 50 mm for forward/return
- Bathroom Radiators with powder coating
- standard in color RAL 9016
- in special colors upon request
- Delivered ready for assembly with wall brackets
- Operating pressure max. 10 bar
- Operating temperature max. 95 °C
- Tube arrangement that is open at the side allows towels to be easily hung up and pushed in at the side
- large wall distance
- Version available on the right or left
- 2000 /2" vent valve
- Mounting accessories in the color of the radiator
Product Safety
Manufacturer
Zehnder Group Deutschland GmbH
E-Mail
info@zehnder-systems.de
Address
Europastraße 10
77933 Lahr
Germany
