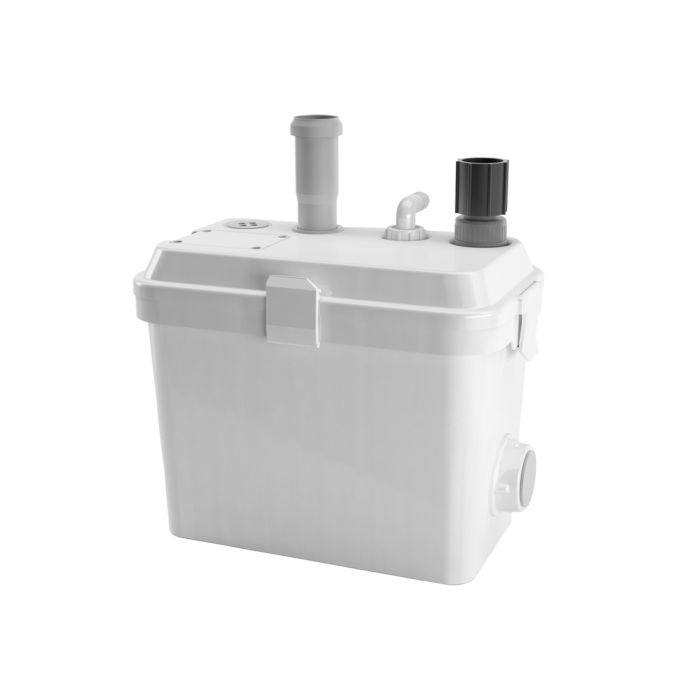

Zehnder Pumps waste water lifting unit 11463 SWH 100, Zehnder Pumps

Zehnder Pumps Wastewater lifting station 11463

• Ready to plug in - easy installation
• PP collection container with approx. 10 l usable capacity
• Switching device integrated in the container lid with acoustic alarm signal in case of impermissibly high water level
• Potential-free contact for external alarm or washing machine stop
• Easy installation and maintenance thanks to sliding piece DN 40 for the wash basin inlet connection
• Pump mounted directly on the lid
• no cable entry on the container
• separate device connection with hose nozzle
• prepared shower inlet DN 50 that can be used on both sides
• (from bottom edge of container to middle of shower inlet pipe only 80 mm)
• Operating temperature 40 °C (briefly up to 90 °C)
• Pressure outlet 2000 2000 /4" with integrated check valve
• Container ventilation through activated carbon filter
• 2000 ,5 m connection cable with protective contact plug
• Pumping of domestic waste water without faeces from washing machines, showers, washbasins, etc. for above-floor installation in frost-protected rooms below the backflow level
