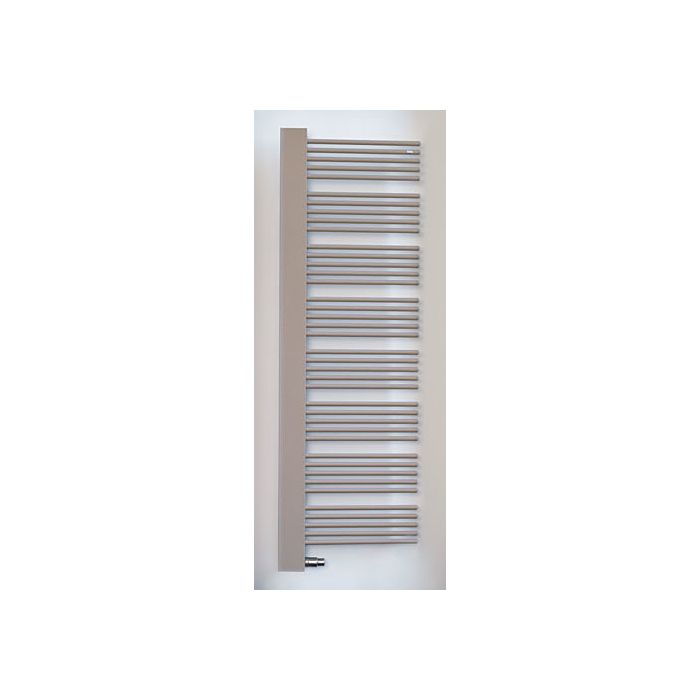

Zehnder Yucca Cover Design- Bathroom Radiators ZY801158G5B1000 YPR-150-60, 1612 x 582 mm, blue gray, RAL 7031, right
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 3200
Details
Zehnder Yucca Cover Design- Bathroom Radiators ZY801158G5B1000
- made of horizontal precision steel tubes and vertical header tubes
- which are covered by a radiation shield
- without visible weld seams
- fully welded using cross hole welding process
- Pipe packages each consisting of 5 horizontal pipes branching off asymmetrically from the laterally arranged collectors
- Towels can be inserted to the side for warming or drying
- Collector pipes Ø 30 mm
- Horizontal tubes Ø 20 mm
- Thermal output measured according to EN 442
- with CE marking
- 4x 2000 /2" connections at the ends of the header pipes
- below for mounting the connection fitting and above for ventilation
- Connection fitting for one- and two-pipe systems (connection dimension 50 mm) with preset valve on the right
- flow on both sides
- with thermostat
- with 2000 /2" IT connection for heating element at the bottom left (subsequent installation of a heating element possible when the cover is removed)
- Bathroom Radiators with powder coating
- standard in color RAL 9016
- in special colors upon request
- Can be combined with painted cover
- Brushed stainless steel
- Delivered ready to install with wall brackets in the same color as the radiator
- Operating pressure max. 12 bar
- Operating temperature max. 110 °C
- easy cleaning
- Ready for connection with fitting
- concealed wall mounting
- Mixed operation possible
- 4x 2000 /2" connections for flow
- Rewind
- Venting
- Connection fitting with connection for heating element
- hidden under cover
- 2x 2000 /2" vent valve
- Mounting accessories in the color of the radiator
